4L FR4 Quick Turn PCB Assembly with Lead Free HASL

4L FR4 Quick Turn PCB Assembly with Lead Free HASL

4L FR4 quick turn PCB assembly

lead free HASL PCB assembly

quick turn PCB with warranty

Miejsce pochodzenia:

Chiny lub Kambodża

Nazwa handlowa:

Suntek Electronics Co., Ltd

Orzecznictwo:

ISO9001 ISO13485 IATF16949 UL

Numer modelu:

2024-PCBA-684

Skontaktuj się z nami
Poproś o wycenę
Szczegóły produktu
Maska lutownicza:
Zielony
Powierzchnia:
Bezołowiowy HASL
Tworzywo:
FR4
Warstwa:
4l
Miedź:
1 uncji każdej warstwy
Dziura min.:
0,1 mm
LW/LS min.:
0,05 mm
Grubość:
0,4 mm-3 mm
Rozmiar na maks.:
1200*400 mm
Test PCBA:
AOT/ICT/FCT
Warunki płatności i wysyłki
Minimalne zamówienie
1PCS
Cena
Zbywalny
Szczegóły pakowania
Przez esd torebki i karton
Czas dostawy
5-7 dni po wszystkich komponentach
Zasady płatności
TT, PayPal
Możliwość Supply
200,000 metrów kwadratowych/rok
ZAŁĄCZONE PRODUKTY
Skontaktuj się z nami
0086-731-84874736
Skontaktuj się teraz
Opis produktu

Fast and Accurate Quick Turn PCB Assembly for Prototype Production in Telecommunications



Suntek Group is a leading supplier in EMS field with one-stop solution for PCB/FPC

assembly,Cable assembly,Mix technology assembly and Box-buildings.

Suntek Electronics Co., Ltd,as the major facility, located in Hunan Prov,China;

BLSuntek Electronics Co., Ltd,as the new facility,located in Kandal Prov,Cambodia.



Product Description:





Project SMT processing capacity
SMT capacity 10 million solder joints/day
Surplus Resistance and capacitance: 0.3%
IC: 0%
Board type POP/PCB/FPC/Rigid-flex board/HDI/High Frequency&Speed
PCB/Metal-PCB
Mounting component precision Minimum package: 03015CHIP/0.20PLT
Minimum Component Accuracy:±0.034MM
IC placement accuracy: ± 0.025MM
PCB SPEC PCB size: 50*50MM~774*710MM
PCB thickness: 0.3~6.5MM







Certificates:



With ISO9001:2015,ISO13485:2016,IATF 16949:2016 and UL E476377 certified,



Equipment

We have advanced production equipments and Testing machines.

Applications:

We have advanced manufacturing equipments,professional technology,professional

engineer team,purchasing team,quality team and management team to guarantee

the high quality products and on time delivery.Our products are widely used in

industrial control,auto,telecommunications,medical equipment,consumer electronics and etc.





Assembly capabilities:

SMT Assembly, BGA Assembly, Through-Hole Assembly, Mixed Assembly, Rigid Flex PCB Assembly Services,

Electro Mechanical Assembly, Box Build Assembly, Product Assembly, Cable Assemblies.

Compliant with a wide range of standards including IPC 610 Class 2 and Class 3.



SMT PCB Assembly Process - Surface Mount Technology



In the fast-paced world of electronics manufacturing, surface mount technology (SMT) assembly is a pivotal innovation that has reshaped the way we produce printed circuit boards (PCBs). This article will take you on an in-depth look at the SMT assembly process as well as the pros and cons!

What is SMT assembly?



SMT, its full name is "surface-mount technology". SMT assembly is the method to place and solder the electronic components on the surface of PCB correctly by using automated machine. With the development of smart technology today, SMT assembly has replaced traditional through-holes technology construction method of fitting electronic components, SMT assembly allows to increase manufacturing automation so that it reduce the manufacturing cost of PCBs greatly and lead to smaller board.



Packaging and Shipping

Our Medical PCB Assembly products are carefully packaged and shipped to ensure their safe delivery to our customers. We understand the importance of maintaining the quality and integrity of our products, especially in the medical industry. That's why we follow strict packaging and shipping guidelines to ensure that our products arrive at their destination in perfect condition.



Our supports



We ensure cost transparency, BOM cost breakdown sharing

We have components suppliers from the Global.

We have a written process to advise customers of any schdule delays or product quality problems,by:

(1)Customer service procedure

(2)RMA procedure

(3)8D reports

(4)PDCA(Plan-Do-Check-Action) in customer service

We respond to the complaints,issues and queries in 24 hours, by:

(1) Weekly reports

(2) Customer supporting team to review communication times

(3) Customer satisfaction questionnaire

Aftersales services:

(1) 1-year guarantee period for all of products

(2) FOC repair

(3) Quick compensation parts to replace defectives.

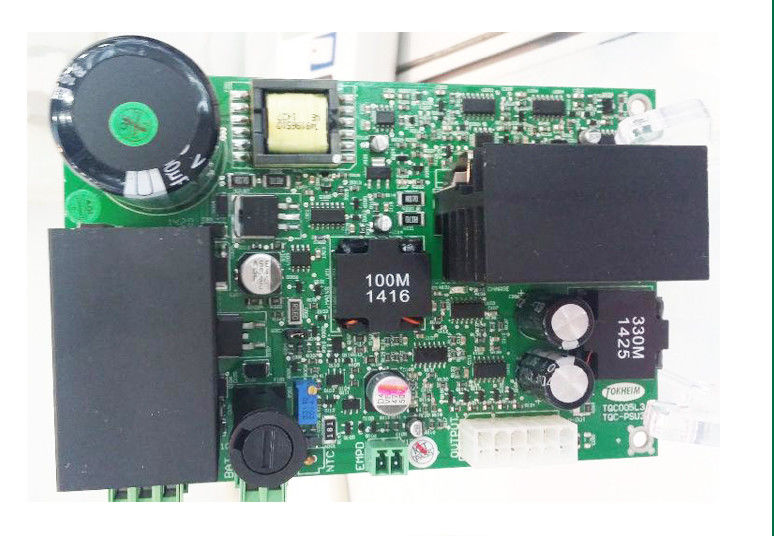

4L FR4 Quick Turn PCB Assembly with Lead Free HASL 0

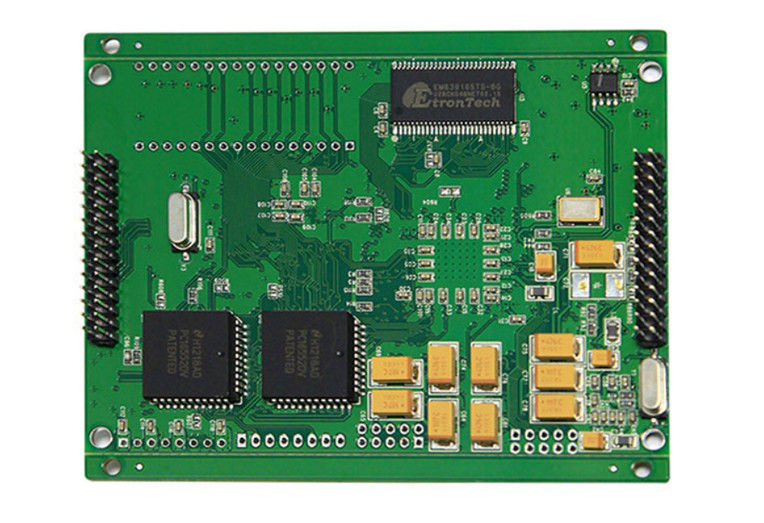

4L FR4 Quick Turn PCB Assembly with Lead Free HASL 1

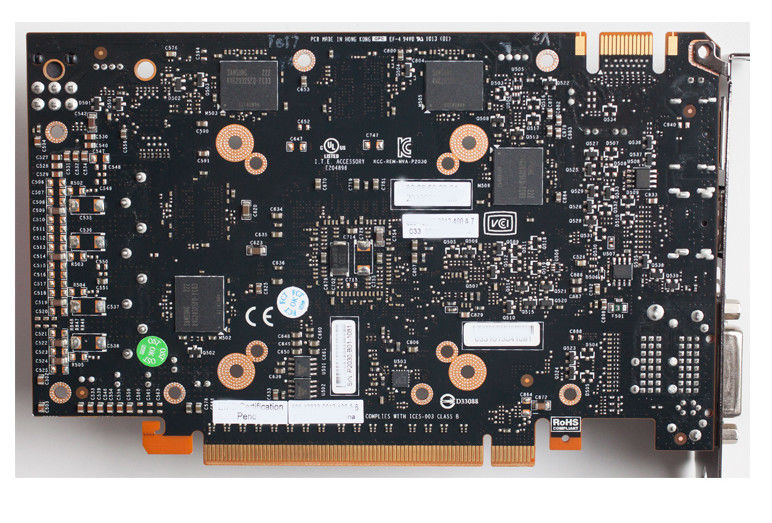

4L FR4 Quick Turn PCB Assembly with Lead Free HASL 2

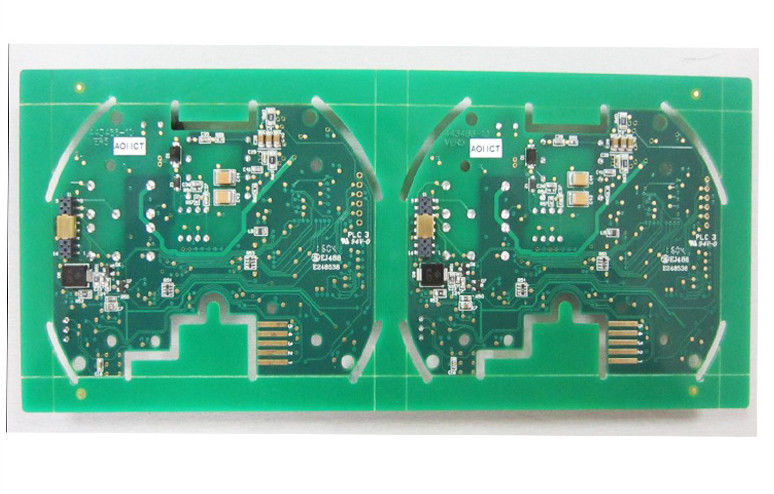

4L FR4 Quick Turn PCB Assembly with Lead Free HASL 3
